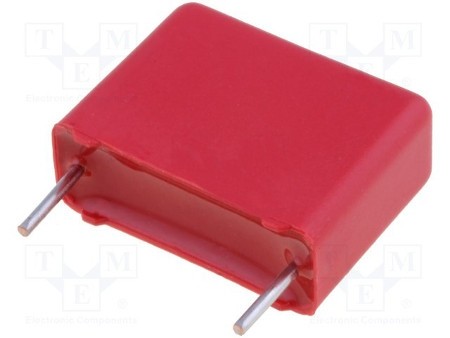

C4.7UF 630V(MKP4)-WIMA, KONDENZATOR 4,7UF 630V 5% Rm37,5mm, KONDENZATORI, MKP4

Manufacturer WIMA
Type of capacitor polypropylene
Capacitance 4.7µF
Body dimensions 20x39.5x41.5mm
Mounting THT
Tolerance ±10%
Terminal pitch 37.5mm
Operating temperature -55...100°C
Climate class 55/100/56
Pulse resistance 120V/μs
Capacitor application high frequency circuits, oscillating circuits, timing circuits
Flammability rating UL94V-0
Kind of material flame retardant
Leads dimensions L 6mm
Max. operating voltage 280V AC, 630V DC

Šifra: 123846

Količina: 0

Kataloški brojevi: MKP4-4.7U/630

Zamjena:
