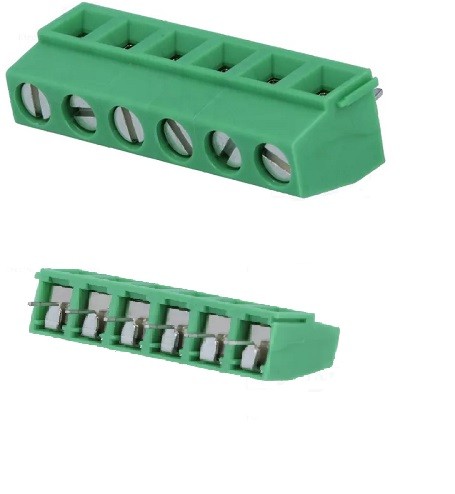

REDNA STEZALJKA 6P/6C, TERMINAL BLOK 6PIN PCB ZELENI Rm=5.0mm-0, KONEKTORI, REDNA STEZALJKA

Manufacturer PHOENIX CONTACT
Type of connector PCB terminal block
Spatial orientation  angled 90°
Contacts pitch 5.08mm
Number of ways 6
Mechanical mounting on PCBs
Electrical mounting THT, cage clamp, screw terminal
Wire cross section 0.25...1.5mm2
Wire size 26...16AWG
Connector terminal
Contact plating tinned
Current rating 10A
Height 10mm
Colour green
Rated voltage 300V
Body material polyamide
Connectors features assembling possibility
Length 30.48mm
Depth 8.1mm
Flammability rating UL94V-0
Type of pin configuration 1x6
Conform to the norm CSA, UL, VDE

Dodatne informacije

Težina bruto: 5.44 g

Šifra: 119891

Količina: 12

Kataloški brojevi: MKDSN1.5/6-5.08

Zamjena:
