RFP40N10-HRS(TO220), TR-N-FET-100V 40A 160W 0,04E, TRANZISTORI, N-FET

Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 100 V
Id - Continuous Drain Current: 40 A
Rds On - Drain-Source Resistance: 40 mOhms
Vgs - Gate-Source Voltage: 20 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Packaging: Tube
Channel Mode: Enhancement
Configuration: Single
Fall Time: 20 ns
Height: 16.3 mm
Length: 10.67 mm
Pd - Power Dissipation: 16 W
Rise Time: 30 ns
Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 42 ns
Typical Turn-On Delay Time: 17 ns
Width: 4.7 mm

Šifra: 25029

Količina: 13

Kataloški brojevi:

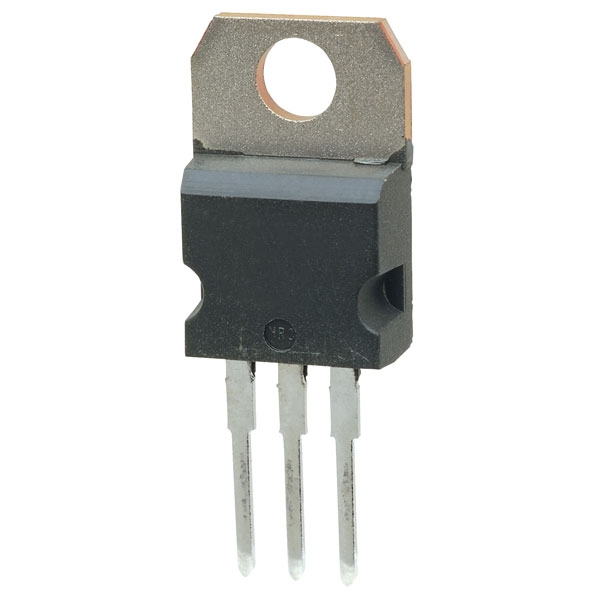

Zamjena: IRF1310NPBF-IRF(MALAYSIA), STP40NF10-ST
