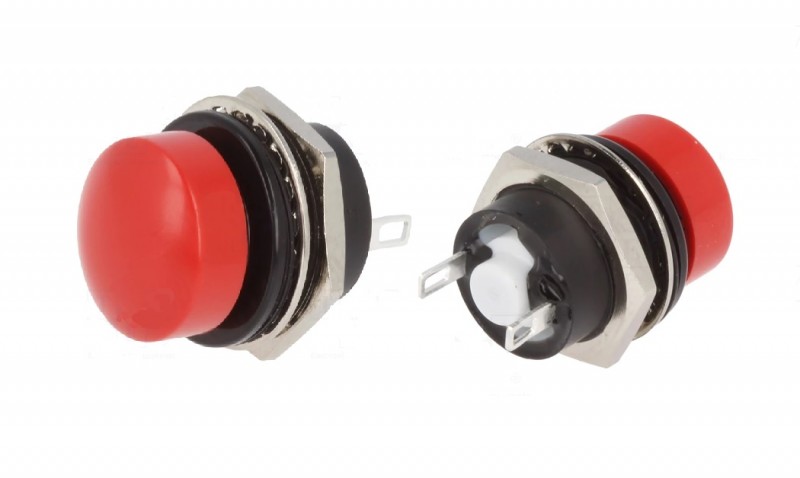

TP-024/R(IP68), CRVENO VODOOTPORNO TIPKALO POTIS OFF-(ON, PREKIDAČI-TIPKALA, TIPKALO

Manufacturer: C&K
Type of switch: push-button
Number of positions: 2
Contacts configuration: SPST-NO
DC contacts rating @R: 5A / 32V DC
Switching method: OFF-(ON)
IP rating: IP68
Illumination: none
Leads: for soldering
Operating temperature: -40...85°C
Electrical life: 25000 cycles
Max. contact resistance: 50mΩ
Operating Force: 8N
Mechanical durability: 1000000 cycles
Button shape: prominent,  round
Mounting hole diameter: Ø12.3mm
Body colour: black
Manufacturer series: PNP
Contact plating: silver plated
Actuator colour: red
Mounting: on panel
Material: PBT,  polymer
Stable positions number: 1

Šifra: 123964

Količina: 1

Kataloški brojevi: PNP8S3T2Y03QE

Zamjena:
