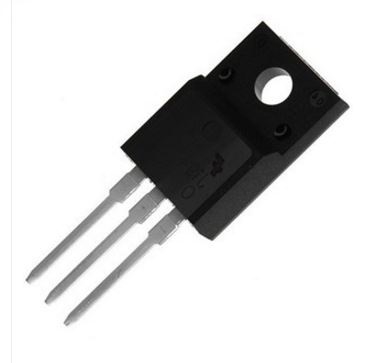

STP20NM60FP-ST, TR-N-FET 600V 20A 0,26OHM(TO220F), TRANZISTORI, N-FET

Manufacturer: STMicroelectronics

FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 600V
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Vgs(th) (Max) @ Id: 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 54nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 1500pF @ 25V
Power Dissipation (Max): 45W (Tc)
Rds On (Max) @ Id, Vgs: 290 mOhm @ 10A, 10V
Operating Temperature: 150°C (TJ)

Šifra: 105927

Količina: 11

Kataloški brojevi:

Zamjena:
