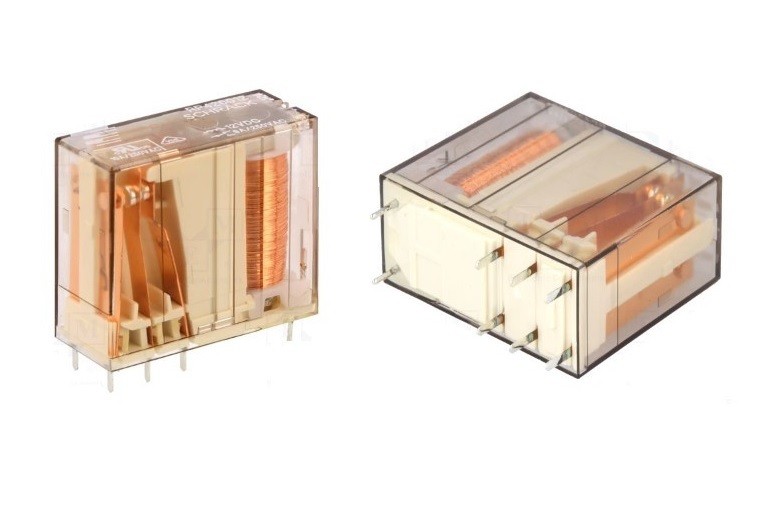

REL-RP42024-TE CONNECTIVITY
RELAY MINI 24V 2X8A DPDT 1100ohm
Šifra:112744
VPC Cijena: 5,90 €
MPC Cijena: 7,37 €
REL-RP42024-TE CONNECTIVITY, RELAY MINI 24V 2X8A DPDT 1100ohm, 24VAC 2KONT.(DPDT), RELAY MINI
Manufacturer: TE Connectivity
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 8A
AC contacts rating @R(at resistive load): 8A / 250V AC
DC contacts rating @R(at resistive load): 8A / 24V DC
Switched voltage: max. 300V DC, max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.1kΩ
Operate time: 8ms
Body dimensions: 29x12.6x25.5mm
Release time: 2ms
Coil power consumption: 0.5W
IP rating: IP40
Mechanical durability :30000000 cycles
Operating temperature: -40...70°C
Relay series: RPII/1
Switching capacity: 4kVA
Contact material: AgNi
Terminal pitch: 5mm
Coil current: 21.8mA
