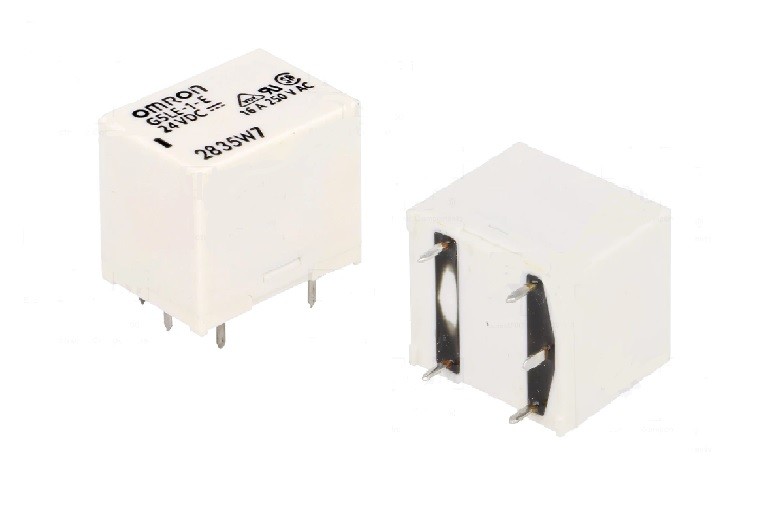

REL-G5LE-1-E-24-OMRON
(5PIN)RELAY 24V 16A SPDT-NO
Šifra:119651
VPC Cijena: 3,50 €
MPC Cijena: 4,38 €
REL-G5LE-1-E-24-OMRON, (5PIN)RELAY 24V 16A SPDT-NO, 24VDC 1KONT.(SPDT), RELAY MINI
Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating @R
(at resistance load) 16 A / 250 VAC
Contact current max. 16A
Switched voltage max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 1.44kΩ
Operate time 0.6ms
Body dimensions 22.5 x 16.5 x 19mm
Release time 7.2ms
Coil power consumption 400mW
Operating temperature -40...85°C
Relay series G5LE-E
Contact resistance 100mΩ
Terminal pitch 2mm
Coil current 16.7mA
Dodatne informacije
Težina bruto: 0.01 kg
Mogućnost narudžbe zamjenskog proizvoda

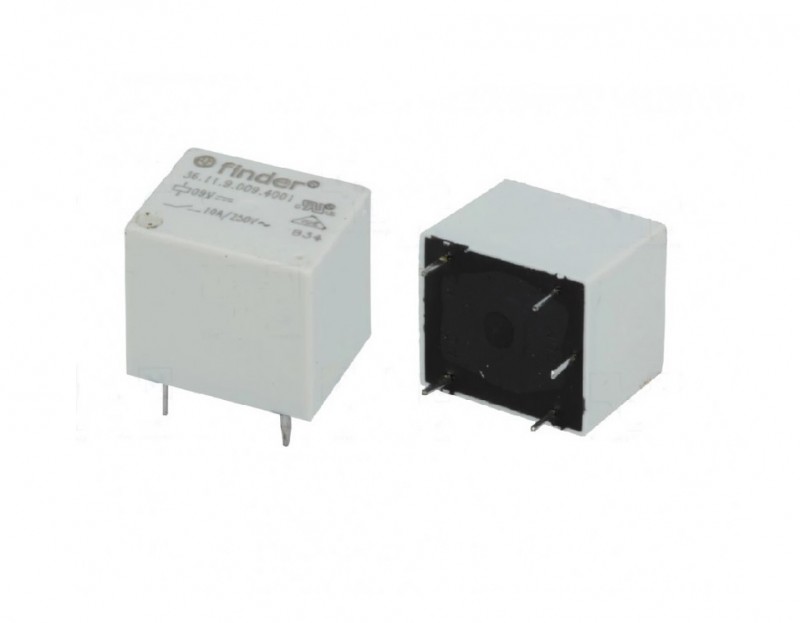

REL-F3611-9024-4001-FINDER
RELAY MINI 24VDC 10A SPDT/250VAC 400ohm
