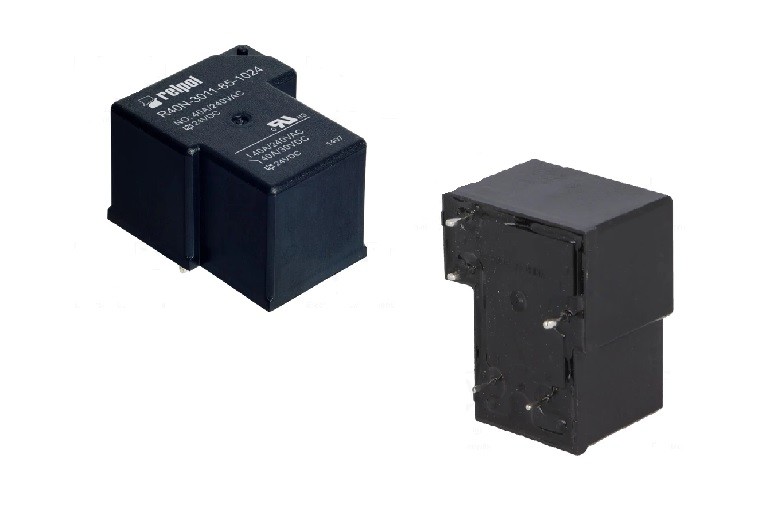

REL-R40N-3011-85-1024-RELPOL
RELAY AUTOMOTIVE SPDT-24VDC 40A 0.9W
Šifra:121430
VPC Cijena: 5,84 €
MPC Cijena: 7,30 €
REL-R40N-3011-85-1024-RELPOL, RELAY AUTOMOTIVE SPDT-24VDC 40A 0.9W, RELAY, 24VDC 1KONT.(SPDT)
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
Contact current max. 40A
Relay series R40N
Relay variant power
Operating temperature -55...100°C
Mounting PCB
Coil resistance 640Ω
Coil power consumption 0.9W
Switched voltage max 110V DC, max 300V AC
Body dimensions 32.5 x 27.6 x 20.5mm
DC contacts rating @R
(at resistance load) 40A / 30VDC
Contact resistance 30mΩ
AC contacts rating @R
(at resistance load) 40A / 240VAC
Operate time 15ms
Release time 10ms
Contact material AgSnO2
Mechanical durability 100000000cycles
Electrical life 1000000cycles
IP rating IP64
Mogućnost narudžbe zamjenskog proizvoda
REL-S12H-PAS-24-SHORI
RELAY SPST-NO 24VDC 30A 277VAC
