REL-HF115F/024-2Z4A, RELAY DPDT 24VDC 8A, 24VDC 2KONT.(DPDT), RELAY MINI

Manufacturer: HONGFA RELAY
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Contact current max: 8A
Switched voltage: max. 300V DC,  max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Coil voltage min: 16.8V DC
Coil voltage max: 36V DC
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Relay series: HF115F
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm

Šifra: 124281

Količina: 4

Kataloški brojevi:

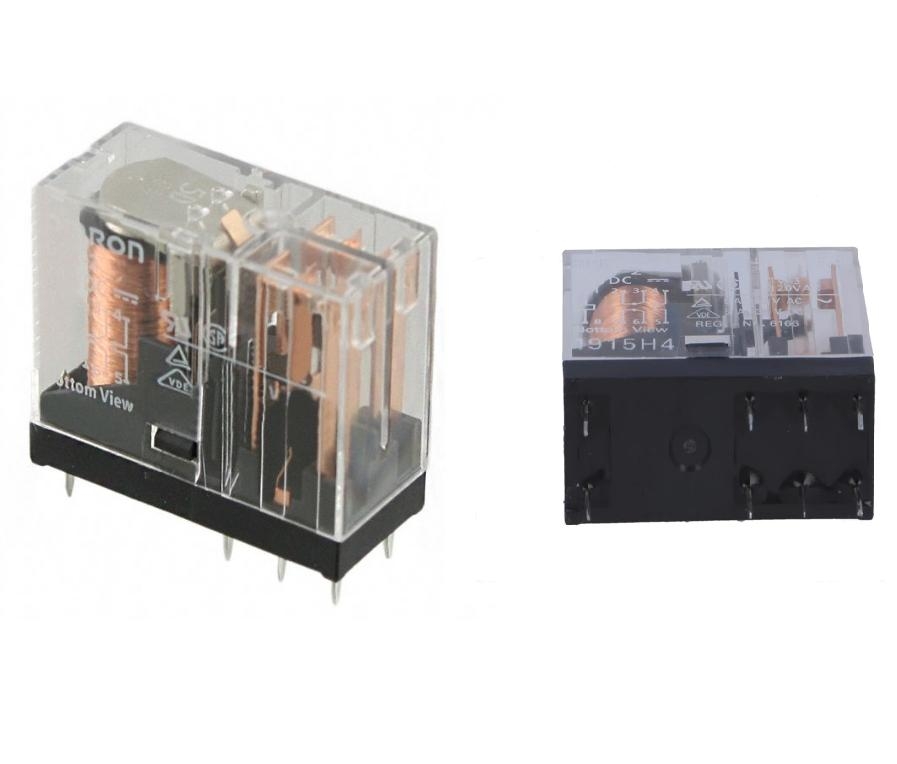

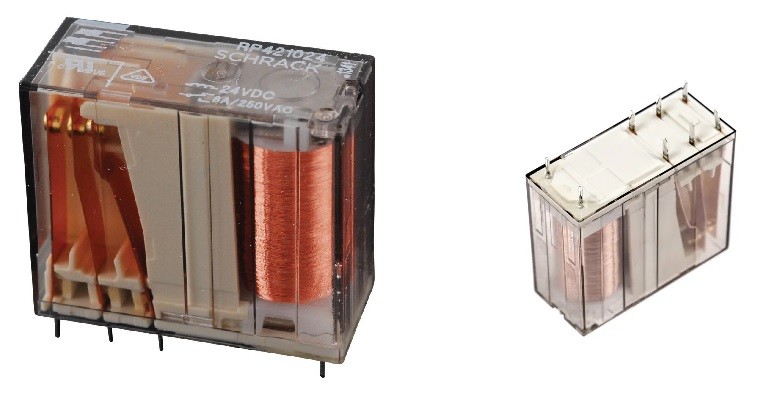

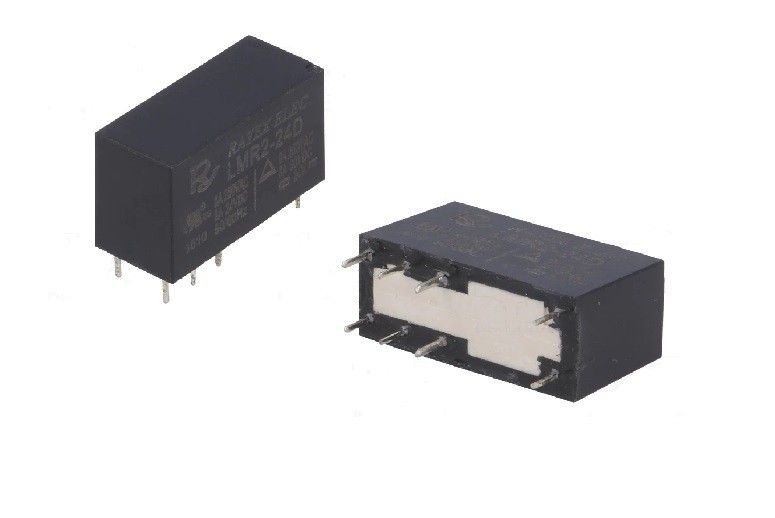

Zamjena: REL-G2R-2-24DC-OMRON, REL-G2RL-2-24VDC-OMRON, REL-LMR2-24D-RAYEX, REL-RP421024
